เครนพับขนาดกลางรุ่น Effer 215

Last updated: Jan 23, 2020  |  3000 จำนวนผู้เข้าชม  |  เครนพับขนาดกลาง




effer> medium> 215


Medium Effer cranes have a lifting capacity between 10 and 30 txm and provide the possibility to create countless confogurations according to the specific needs. Effer applies the same technology characterising big cranes also to those of the medium range, to ensure the best performance and an excellent durability thanks to forefront materials and technological solutions



DATA SHEET

DESCRIZIONE
UNITÀ DI MISURA
2S
3S
4S
5S
6S
  Max. hydraulic outreach
m
8,16
10,35
12,52
14,71
16,91
  Max. lifting moment (+20°)
kgm
20920
20455
20050
19610
19310
kNm
205
201
197
192
189
  Slewing arc
(°)
continua
  Slewing capacity-max slope
(%)
8,7
  Working pressure
bar
350
  Recommended oil dilivery
l/min
60
  Oil tank capacity
l
80
  Weight of the standard crane (± 2%)
kg
2500
2645
2785
2915
3030


STANDARD



OPTIONAL

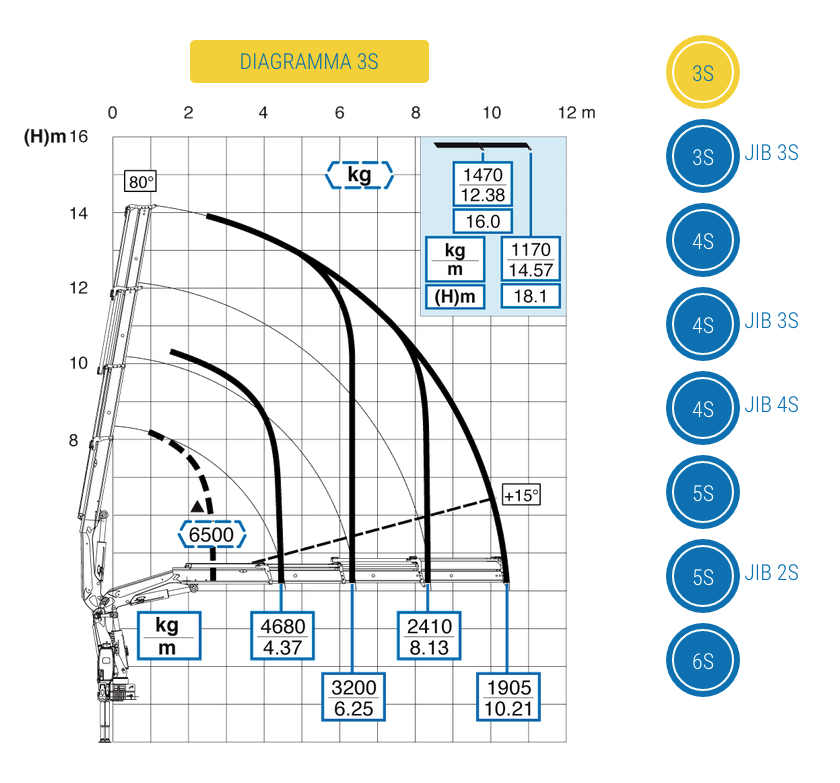

DIAGRAMS

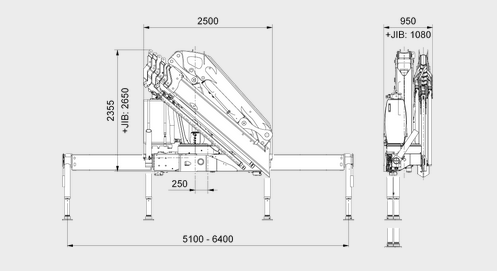

DIMENSIONS










File to download
- Brochure model

Photo Gallery : เครนพับขนาดกลาง รุ่น Effer 215
