เครนพับขนาดกลางรุ่น Effer 220

Last updated: Jan 23, 2020  |  3135 จำนวนผู้เข้าชม  |  เครนพับขนาดกลาง




effer> medium> 220


Medium Effer cranes have a lifting capacity between 10 and 30 txm and provide the possibility to create countless configurations according to the specific needs. Effer applies the same technology characterising big cranes also to those of the medium range, to ensure the best performance and an excellent durability thanks to forefront materials and technological solutions




DATA SHEET

DESCRIZIONE
UNITÀ DI MISURA
2S
3S
4S
5S
6S
  Max, hydraulic outreach
m
8,60
10,78
12,96
15,13
17,31
  Max. lifting moment (+15°)
kgm
19880
18870
18260
17430
17500
kNm
195
185
179
171
171
  Slewing arc
(°)
400




  Slewing capacity-max slope
(%)
7




  Working pressure
bar
315




  Recommended oil delivery
l/min
70




  Oil tank capacity
l
160




  Weight of the standard crane (± 2%)
kg
2560
2720
2855
3000
3130


STANDARD


OPTIONAL


DIAGRAMS

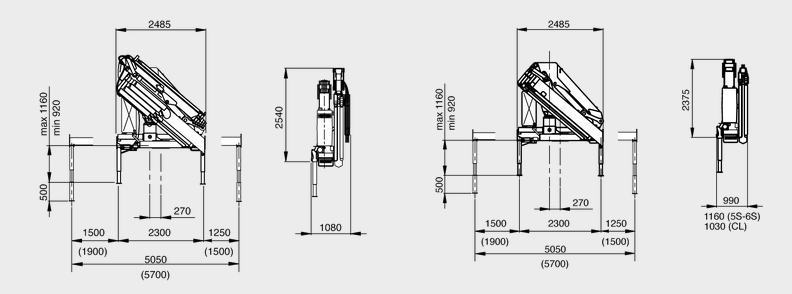

DIMENSIONS








File to download
- Brochure model
