เครนพับขนาดกลางรุ่น Effer 265

Last updated: Jan 23, 2020  |  2871 จำนวนผู้เข้าชม  |  เครนพับขนาดกลาง



effer>> mediem> 265

The 265 crane has the maximum load lifting capacity and an extremely low weight in its category. Apart from ensuring all functions and options allowed by the PROGESS electronic control, the crane is an excellent working tool, thanks to its high operating speeds under normal loading conditions and to the presence of high-performance jibs. The choice to have a continuous rotation makes this crane the best choice for installations on the rear of the truck.




DATA SHEET

DESCRIPTION
UNITOF MEASURE
2S
3S
4S
5S
6S
  Max. hydraulic outreach
m
8,22
10,35
12,52
14,80
17,10
  Max. lifting moment (+20°)
kgm
24740
24390
23855
23240
22870
kNm
243
239
234
228
224
  Slewing arc
(°)
continua
  Slewing Capacity-Max slope
%
8,7
  Working pressure
bar
350
  Recommended oil delivery
l/min
80
  Oil tank capacity
l
160
  Weight of the standard crane (± 2%)
kg
2835
2985
3150
3330
3445



STANDARD



OPTIONAL

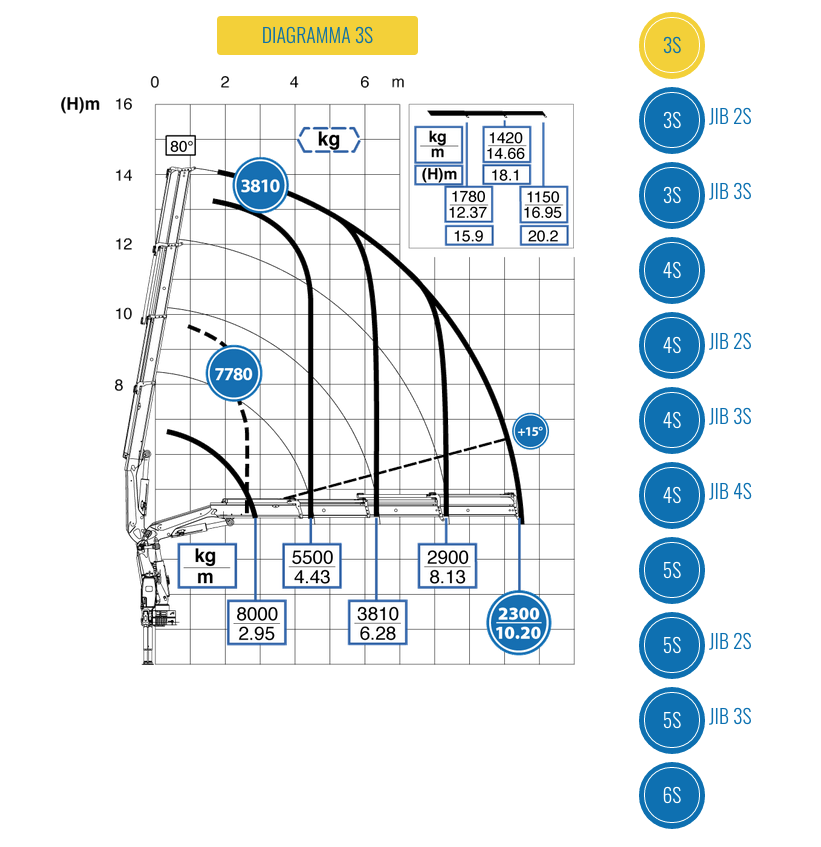

DIAGRAMS

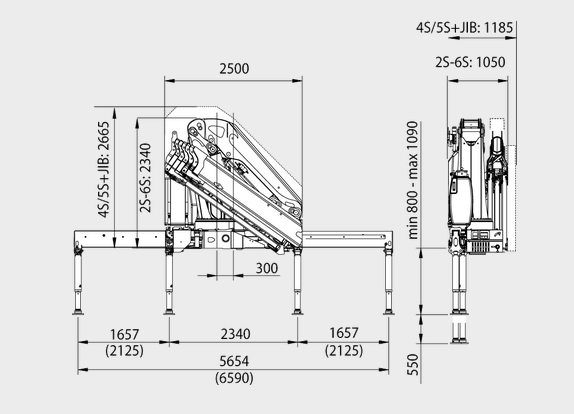

DIMENSIONS








File to download
Avant-Tech

Brochure model
