เครนพับขนาดเล็กรุ่น Effer 80

Last updated: Jan 23, 2020  |  3502 จำนวนผู้เข้าชม  |  เครนพับขนาดเล็ก



effer> light> 80

Small Effer cranes cover the market segment of the lifting class from 2 to 10 txm and are a mix of power and performances for customers looking for an effective and easy-to-use product. The quality of materials and design characterising big and medium Effer cranes can be found also in this product range, to ensure better performances for any type of work.



DATA SHEET

DESCRIPTIONUNIT OF MEASURE1S2S3S4S
  Max. hydraulic outreachm5,567,359,1410,93
  Max. lifting moment (+20°)kgm7480717569606710
kNm73,3870,3968,2865,83
  Slewing arc(°)380
  Slewing Capacity – Max slope%8,7
  Working pressurebar330
  Recommended oil deliveryl/min20
  Oil tank capacityl50
  Weight of the standard crane (± 2%)kg91599510701135


STANDARD


OPTIONAL

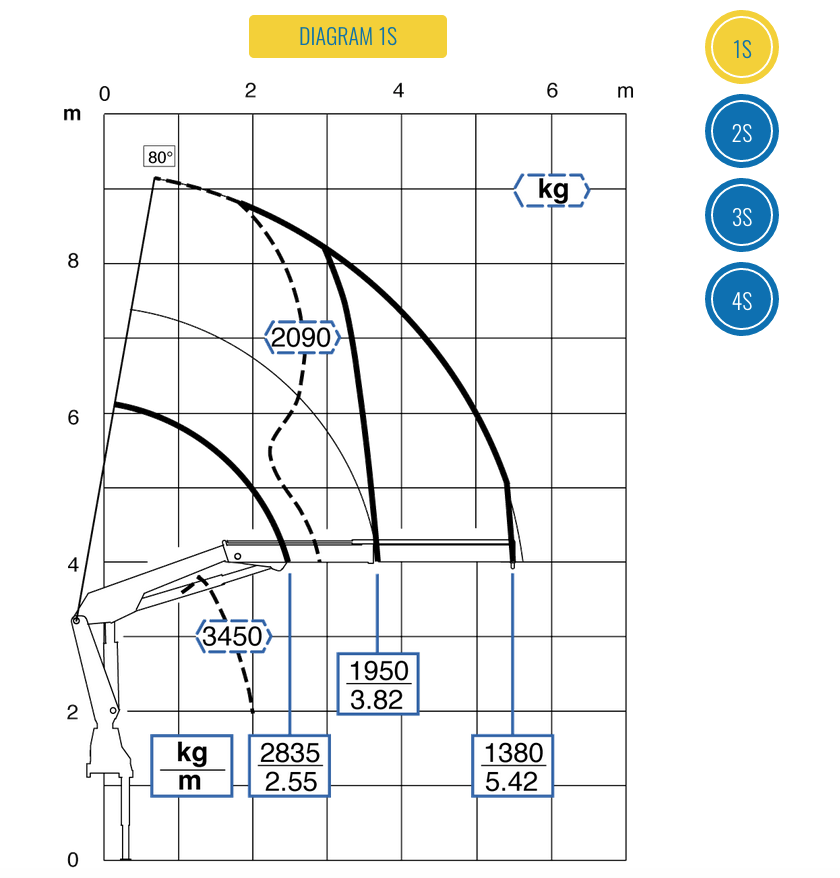

DIAGRAMS

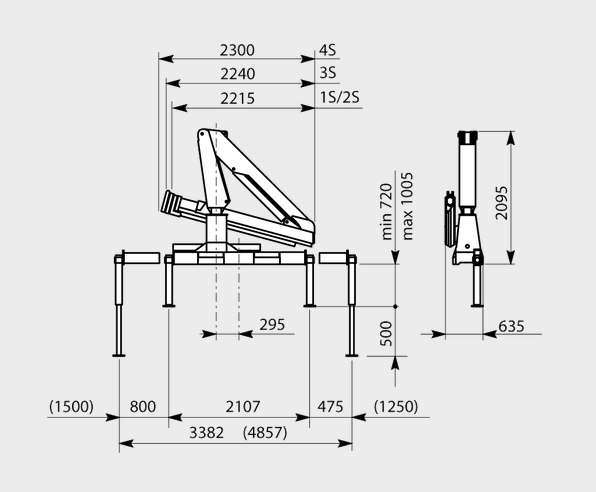

DIMENSIONS







File to download
- Brochure model
