effer> medium> 305


Medium Effer cranes have a lifting capacity between 10 and 30 txm and provide the possibility to create countless configurations according to the specific needs. Effer applies the same technology characterising big cranes also to those of the medium range, to ensure the best performance and an excellent durability thanks to forefront materials and technological solutions.




DATA SHEET

DESCRIPTION
UNITOF MEASURE
2S
3S
4S
5S
6S
  Max. hydraulic outreach
m
8,22
10,35
12,52
14,80
17,10
  Max. lifting moment (+20°)
kgm
24740
24390
23855
23240
22870
kNm
243
239
234
228
224
 Slewing arc
(°)
endless


STANDARD



OPTIONAL

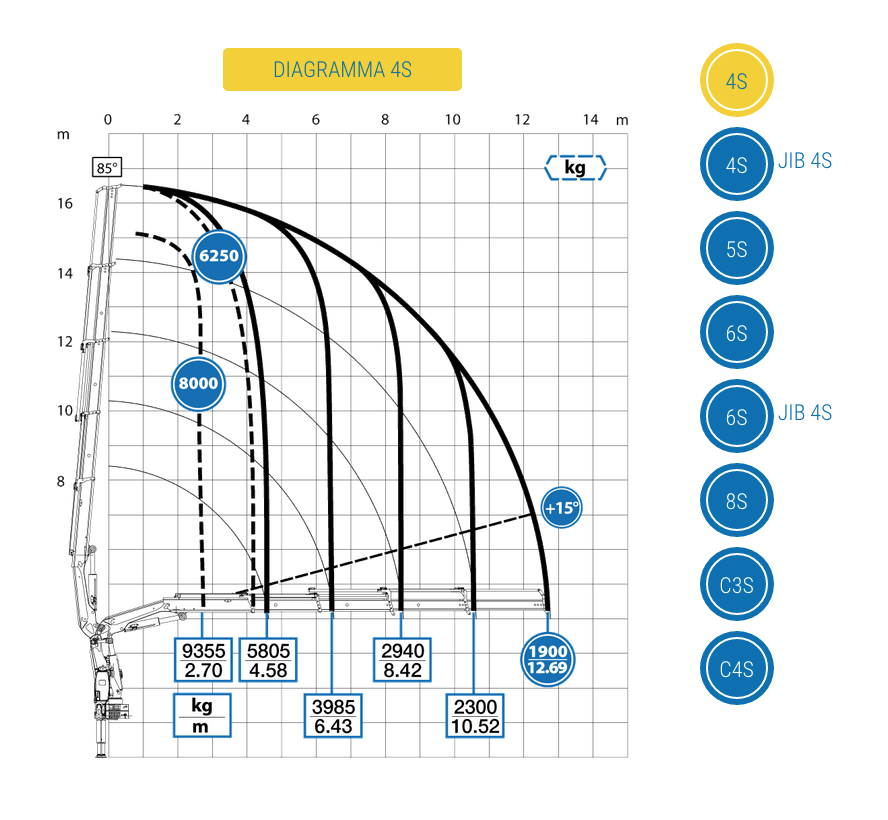

DIAGRAMS

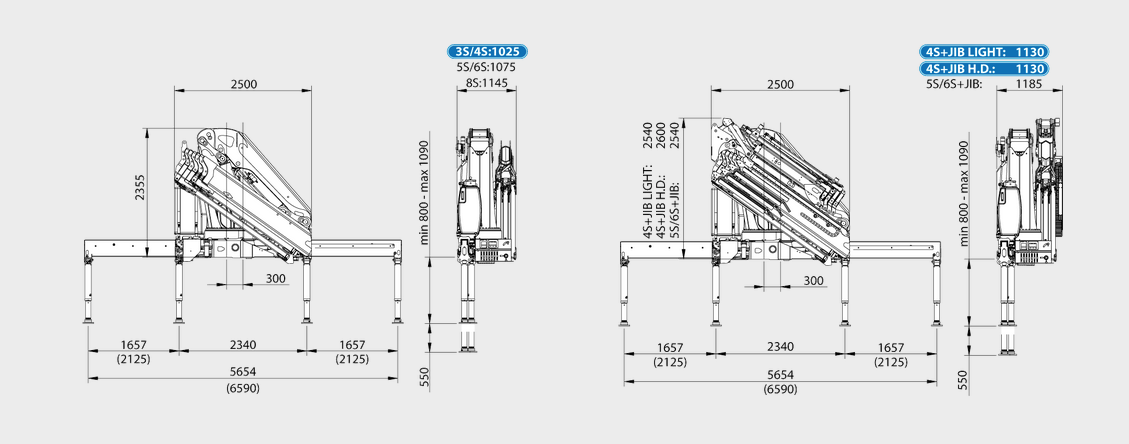

DIMENSIONS




File to download
Avant-Tech

Brochure model
