เครนพับขนาดกลางรุ่น Effer 315

Last updated: Jan 23, 2020  |  3095 จำนวนผู้เข้าชม  |  เครนพับขนาดกลาง




effer> medium> 315


The 315 crane achieves maximum lifting performances for installations on 2-axle trucks, thanks to a design that is careful to all the details of construction and the use of materials with the highest structural strength. The PROGESS electronics has also made it possible to reach excellent results concerning operating speeds and load handing capacity, ensuring the highest standards of operational safety. The crane has jibs of modern design with extraordinary outreach and lifting capacity, which are at the top of the category.


DATA SHEET

DESCRIPTION
UNIT OF MEASURE
3S
4S
5S
6S
8S
  Max. hydraulic outreachm10,5812,8414,6216,9421,42
kgm2896528185278052744026685
  Max. lifting moment (+20°)kNm284277273270262
  Slewing arc(°)continua
  Slewing Capacity-Max slope%8,7
  Working pressurebar340
  Recommended oil deliveryl/min100
  Oil tank capacityl160
  Weight of the standard crane (± 2%)kg32653445358037053945


STANDARD



OPTIONAL

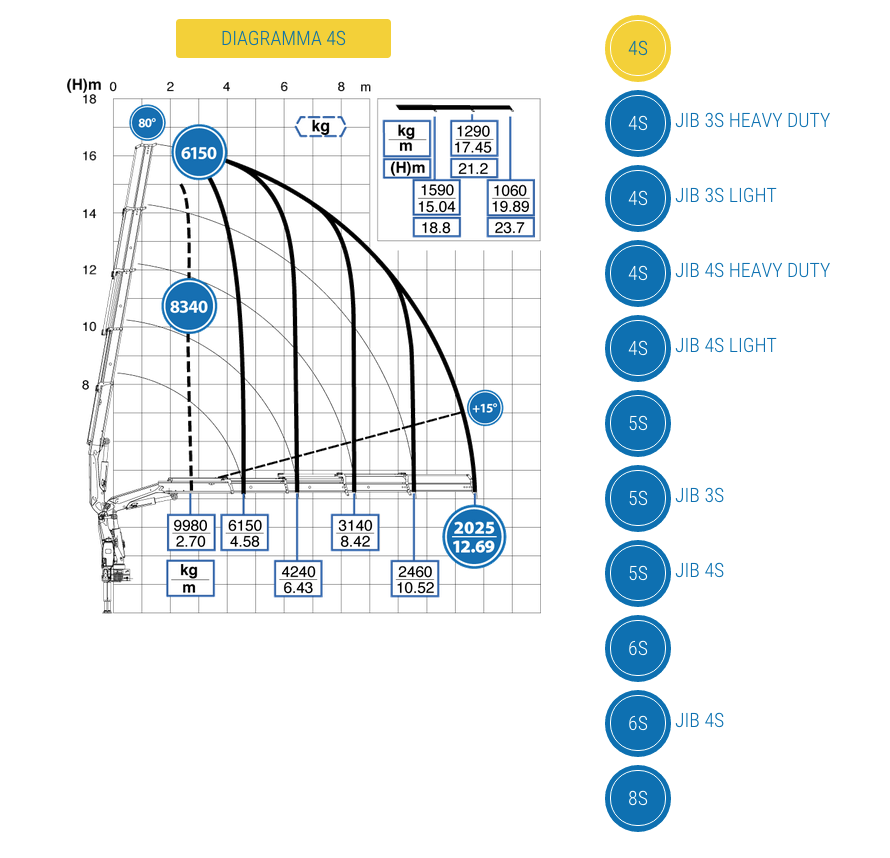

DIAGRAMS

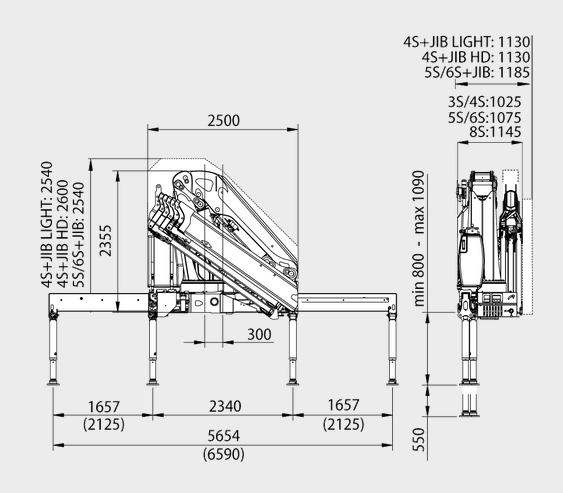

DIMENSIONS





File to download
- Brochure model
