เครนพับขนาดเล็กรุ่น Effer 65

Last updated: Jan 23, 2020  |  5086 จำนวนผู้เข้าชม  |  เครนพับขนาดเล็ก



effer> light>65

Small Effer cranes cover the market segment of the lifting class from 2 to 10 txm and are a mix of power and performances for customers looking for an effective and easy-to-use product. The quality of materials and design characterising big and medium Effer cranes can be found also in this product range, to ensure better performances for any type of work.




DATA SHEET

DESCRIPTION
UNIT OF MEASURE
1S
2S
3S
4S
  Max. hydraulic outreachm5,387,158,9410,70
  Max. lifting moment (+25°)kgm6340615058855740
kNm62,2060,3357,7356,31
  Slewing arc(°)370
  Slewing Capacity – Max slope%7,9
  Working pressurebar295
  Recommended oil deliveryl/min20
  Oil tank capacityl50
  Weight of the standard crane (± 2%)kg7908709451010



STANDARD


OPTIONAL


DIAGRAMS

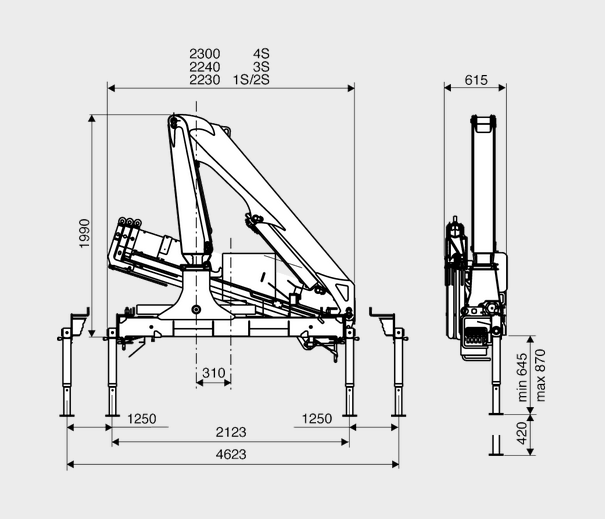

DIMENSIONS





File to download
- Brochure model
