เครนพับขนาดเล็กรุ่น Effer 43

Last updated: Jan 23, 2020  |  1437 จำนวนผู้เข้าชม  |  เครนพับขนาดเล็ก

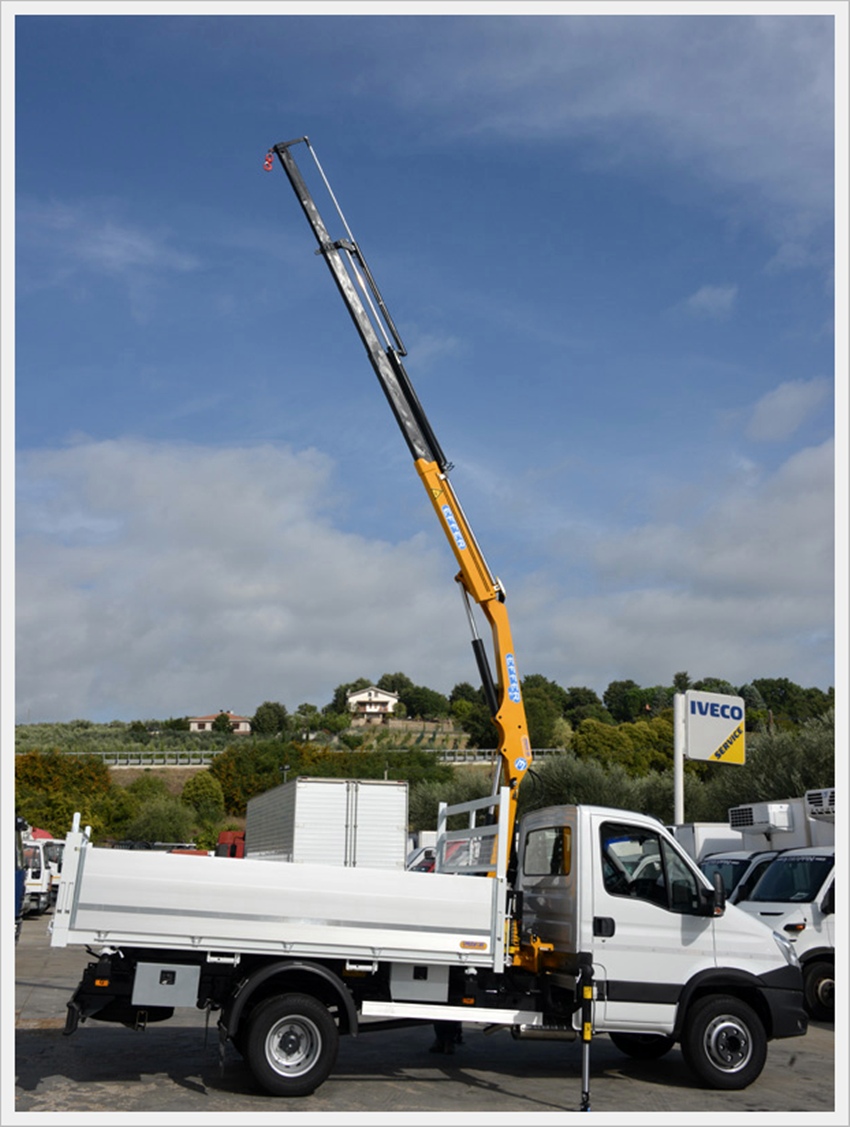

Effer 43
Small Effer cranes cover the market segment of the lifting class from 2 to 10 txm and are a mix of power and performances for customers looking for an effective and easy-to-use product. The quality of materials and design characterising big and medium Effer cranes can be found also in this product range, to ensure better performances for any type of work.

Basic Data2s3s4s
Max horizontal lifting capacity at max outreach (kg)660510420
Max outreach (m)5,807,108,40
Max lifting moment (txm)3,913,873,69
Weight of the standard crane (kg)700745785
Slewing arc (°)368368368

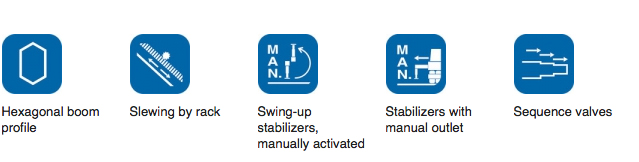

Versions


Equipment Standard
Optionals


File to download
- Brochure model
