เครนพับขนาดใหญ่ รุ่น EFFER 385

Last updated: Jan 23, 2020  |  1313 จำนวนผู้เข้าชม  |  เครนพับขนาดใหญ่

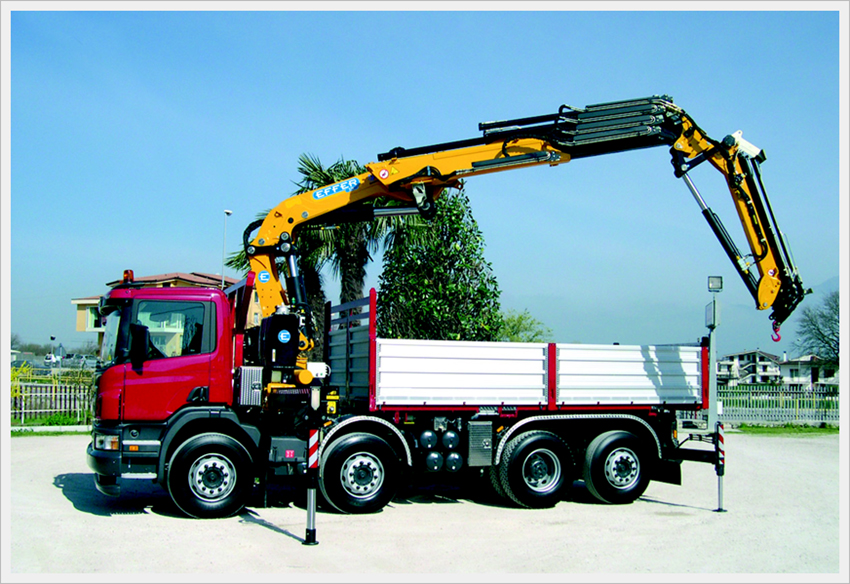

Effer 385
The 395 crane represents an optimal compromise between lifting capacity and dimensions, since it has been designed to have an extremely reduced space behind the cab and a very low weight. These results have been obtained thanks to an innovative design and the careful selection of components.
The reliable PROGRESS electronics has also made it possible to reach a remarkable manoeuvrability, granting all the highest safety standards.

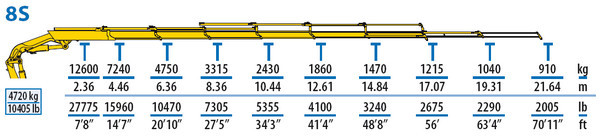

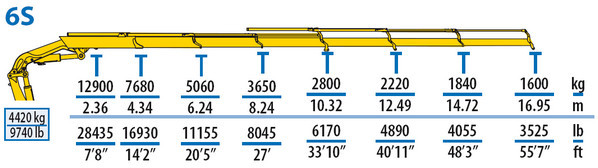

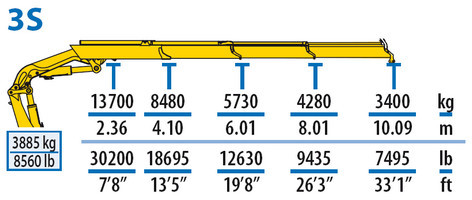

Basic Data3s4s6s8s
Max horizontal lifting capacity at max outreach (kg)340026001600910
Max outreach (m)10,0912,3516,9521,64
Max lifting moment (txm)34,7734,0333,3332,29
Weight of the standard crane (kg)3885408044204720
Slewing arc (°)407407407407
Min GVW for crane installation (kg) 25,530

Versions





Equipment Standard
Optionals


File to download

Photo Gallery : เครนพับขนาดใหญ่ รุ่น Effer 385
