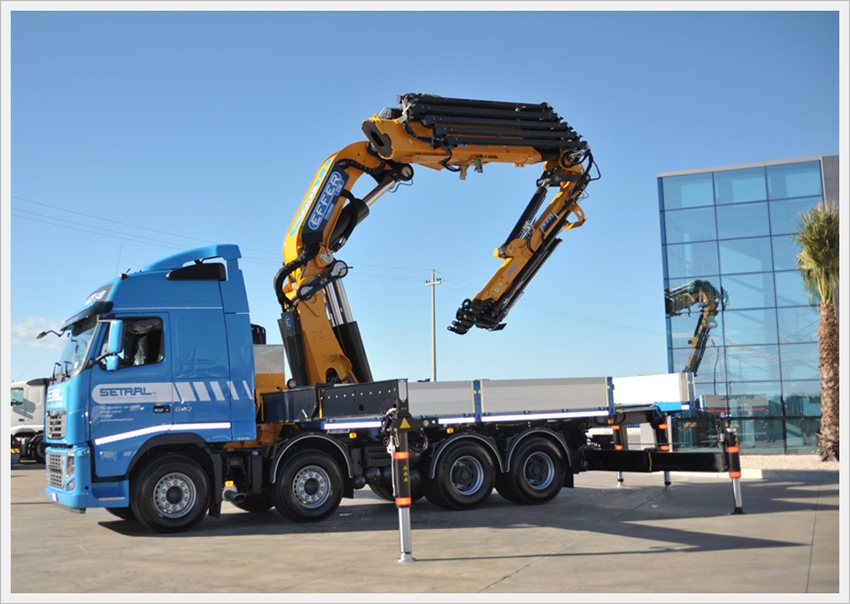

 | | | | | | | The reduced weight and compact dimensions allow installation on 4 axle-trucks with remaining payload up to 3 ton. The possibility to combine the basic boom (available in a configuration with up to 8 extensions) with two types of jibs gives the crane one of the longest hydraulic outreaches in its category. The control system with multiple, simultaneous manoeuvres, allows swift, progressive yet very precise motions, thus the operator can work from the console of the mobile radio control. |
| | | DATA SHEET | | DESCRIPTION | UNIT OF MEASURE | 2S* | 4S | 6S | 8S | L8S | Max. hydraulic outreach | m | 7,63 | 11,31 | 15,40 | 19,88 | 24,21 | Max. lifting moment (+20°) | kgm | 130130 | 125800 | 121200 | 120100 | 117150 | kNm | 1280 | 1235 | 1190 | 1180 | 1150 | Slewing arc | (°) | continua | Slewing Capacity - Max slope | % | 8,7 | Working pressure | bar | 355 | Recommended oil delivery | l/min | 200 | Oil tank capacity | l | 500 | Weight of the standard crane (± 2%) | kg | 10900 | 12050 | 13000 | 13800 | 14300 |
| | | | | | | | | DIAGRAMS |  |

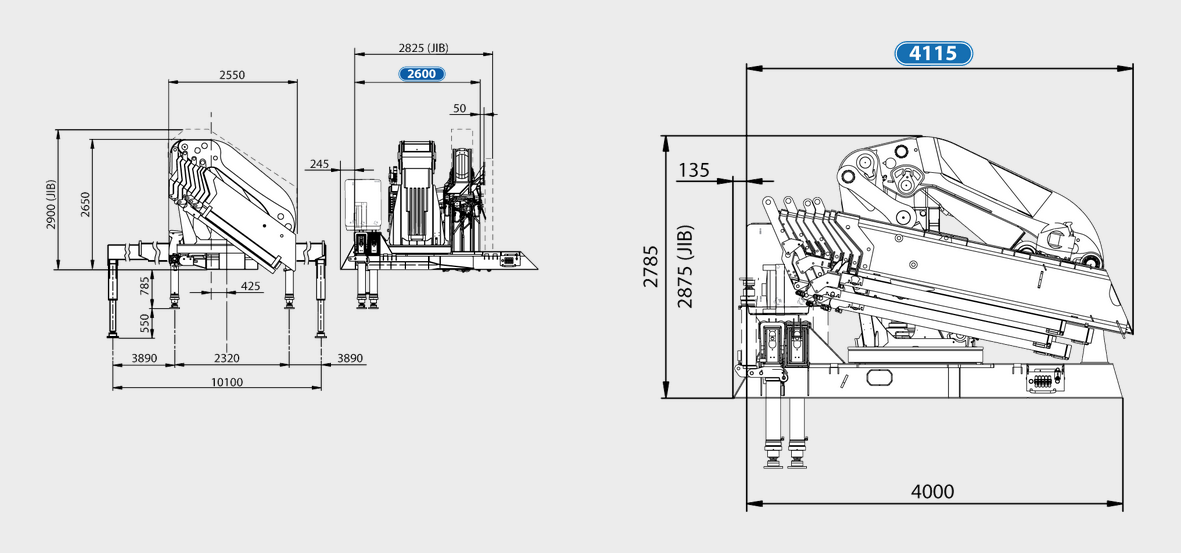

| | | | | | | | DIMENSIONS |  |
| | |
