เครนพับขนาดใหญ่ รุ่น EFFER 2655

Last updated: Jan 23, 2020  |  3468 จำนวนผู้เข้าชม  |  เครนพับขนาดใหญ่




effer> big> 2655

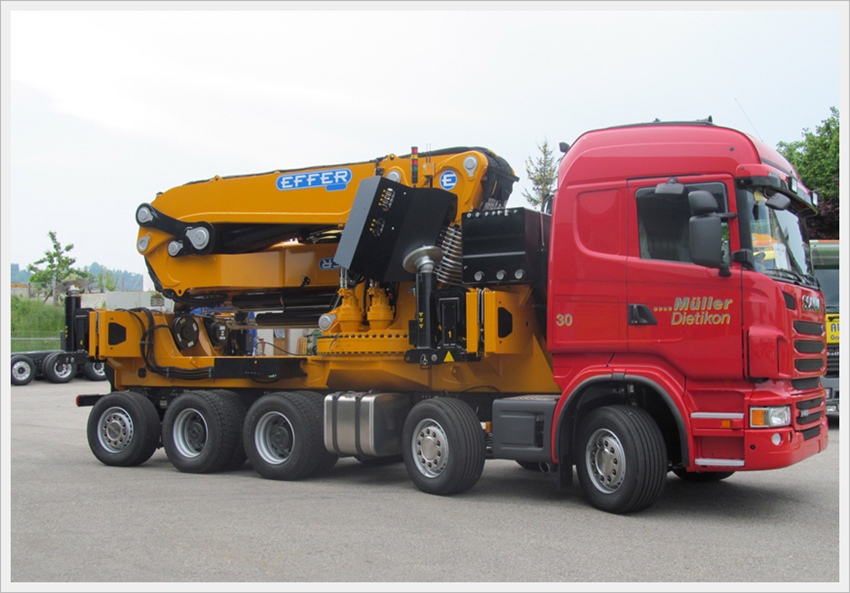

Incredible distances and extraordinary lifting capacity are the main features of the Effer 2655 crane, which make this crane an essential invertment to be unique on the truck market. The high speed of 2655 and the exclusive Wind & Drive system allow a fast and flexible use of the unit on the most challenging working situations. The possibility to get a further hydraulic joint able to work at 60 m height with a joint of 54 m makes this crane an incredible and unique investment for all customer operating in the city centre or difficult sites where large mobile cranes cannot operate.


DATA SHEET

DESCRIPTIONUNIT OF MEASURE3S4S6S7S
  Max. hydraulic outreachm16,0819,0124,8727,83
  Max. lifting moment (+30°)kgm198480194030186270183080
kNm1947190418281796
  Slewing arc(°)continua
  Slewing Capacity-Max slope%8,7
  Working pressurebar370
  Recommended oil deliveryl/min180
  Oil tank capacityl800


STANDARD



OPTIONAL

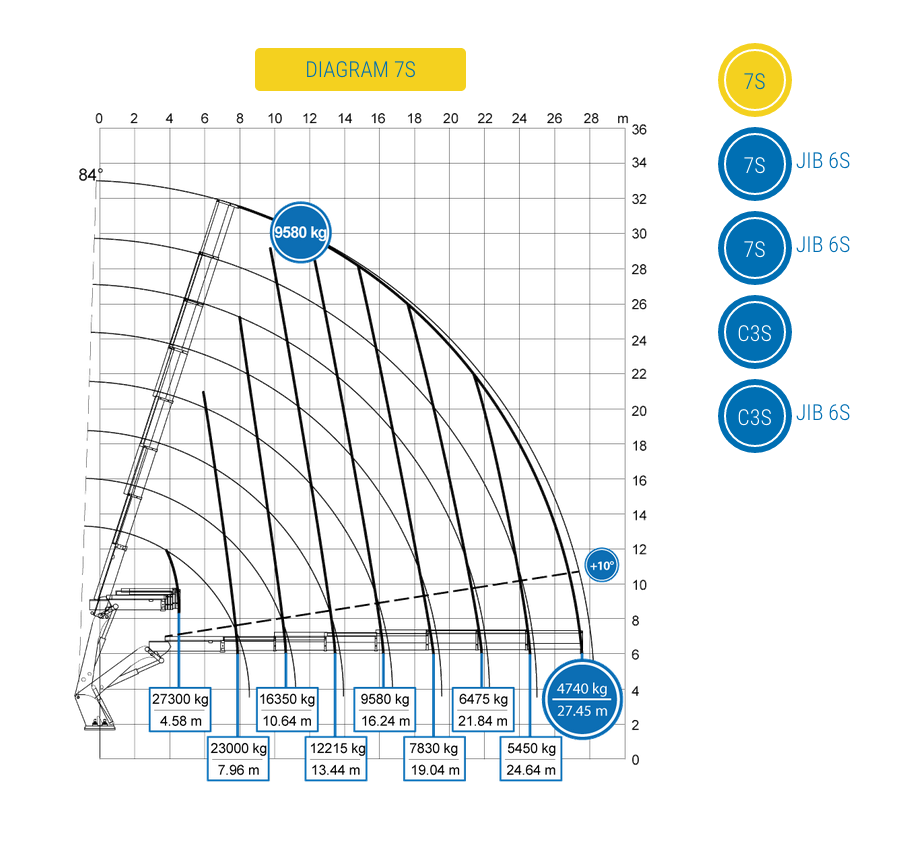

DIAGRAMS

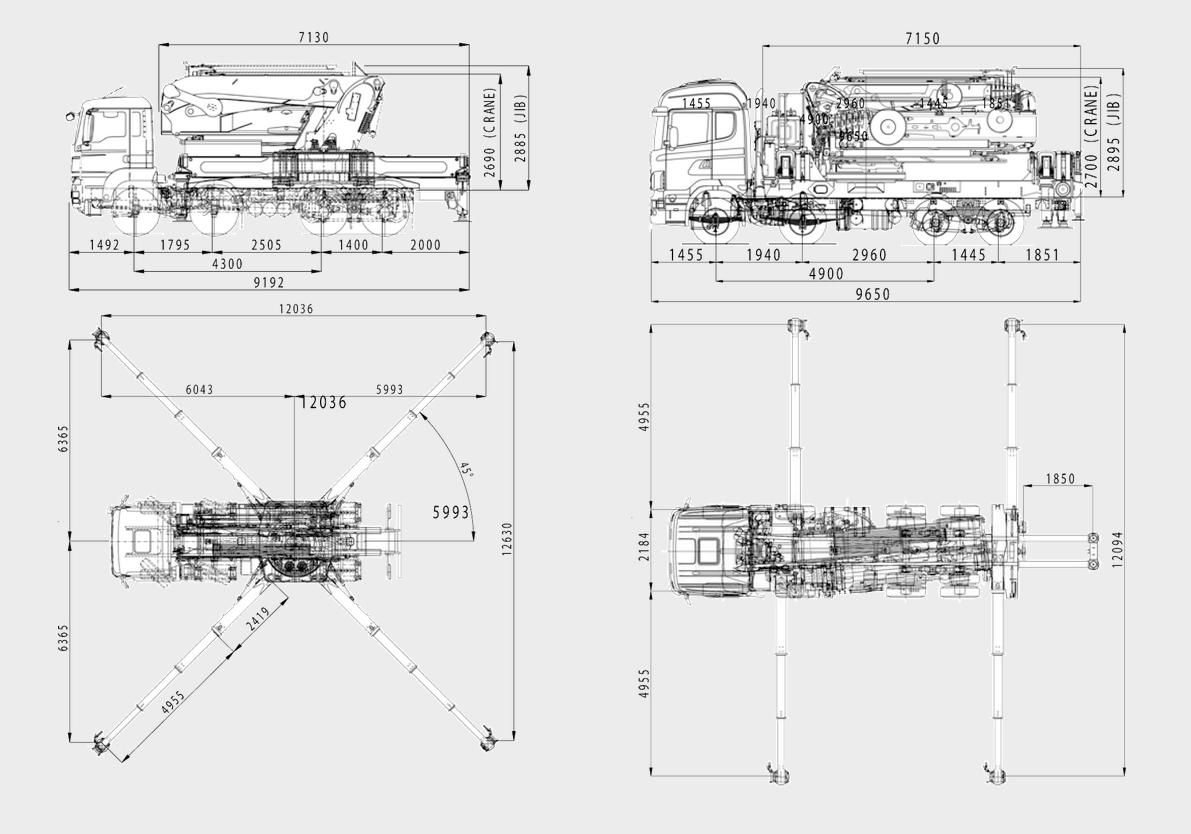

DIMENSIONS








File to download

Photo Gallery : เครนพับขนาดใหญ่ รุ่น Effer 2655
